1993 VW Westfalia T4 California Coach



The Volkswagen Westfalia T4 Transporter California Coach Camper Model History

Circa 1993 the VW Westfalia T4 Transporter California Coach model was introduced. The Westfalia California Coach was a continuation of the original first (1990 onwards) T4 Westfalia model previously known as the California. The Westfalia California Coach was available in both hightop and poptop roof versions. Up to 1996 the base vehicle for the VW California Coach was the short wheel base “short nose” version of the VW T4 Transporter.

If you find the site useful please consider making a small donation to help pay towards the site running and development costs by clicking the Paypal button on the left (You don’t need a Paypal account to make a donation) ;-)



1) 1993 - 1995 VW Westfalia T4 Transporter California Coach Camper engine options and approx price (inclusive tax when new in standard form):

From 06/1994 (1995 Model Year)  price list. Prices are in German Deutschmark:

California Coach with Poptop Roof:

Volkswagen California Coach Petrol Otto Kat Motor 2.0 litre, 4 cylinder, 62 KW (84 PS), 5 Speed Gearbox, load weight 2725 kg, wheelbase 2920 mm,  50,819 DM

Volkswagen California Coach Petrol Otto Kat Motor 2.5 litre, 5 cylinder, 81 KW (110 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 2920 mm,  54,205 DM

Volkswagen California Coach Petrol Otto Kat Motor 2.5 litre, 5 cylinder, 81 KW (110 PS), Automatic Gearbox, load weight 2800 kg, wheelbase 2920 mm,  57,408 DM

Volkswagen California Coach Diesel Motor 1.9 litre, 4 cylinder, 44 KW (60 PS), 5 Speed Gearbox, load weight 2725 kg, wheelbase 2920 mm,  49,427 DM

Volkswagen California Coach Diesel Motor 2.4 litre, 5 cylinder, 57 KW (78 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 2920 mm,  52,745 DM

Volkswagen California Coach Diesel Motor 2.4 litre, 5 cylinder, 57 KW (78 PS), Automatic Gearbox, load weight 2800 kg, wheelbase 2920 mm,  55,948 DM

Volkswagen California Coach Diesel Motor 1.9 litre Turbo-D Kat, 4 cylinder, 50 KW (68 PS), 5 Speed Gearbox, load weight 2725 kg, wheelbase 2920 mm,  50,623 DM

California Coach with Hightop Roof:

Volkswagen California Coach Petrol Otto Kat Motor 2.0 litre, 4 cylinder, 62 KW (84 PS), 5 Speed Gearbox, load weight 2725 kg, wheelbase 2920 mm,  54,970 DM

Volkswagen California Coach Petrol Otto Kat Motor 2.5 litre, 5 cylinder, 81 KW (110 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 2920 mm,  58,357 DM

Volkswagen California Coach Petrol Otto Kat Motor 2.5 litre, 5 cylinder, 81 KW (110 PS), Automatic Gearbox, load weight 2800 kg, wheelbase 2920 mm,  61,560 DM

Volkswagen California Coach Diesel Motor 1.9 litre, 4 cylinder, 44 KW (60 PS), 5 Speed Gearbox, load weight 2725 kg, wheelbase 2920 mm,  53,579 DM

Volkswagen California Coach Diesel Motor 2.4 litre, 5 cylinder, 57 KW (78 PS), 5 Speed Gearbox, load weight 2800 kg, wheelbase 2920 mm,  56,896 DM

Volkswagen California Coach Diesel Motor 2.4 litre, 5 cylinder, 57 KW (78 PS), Automatic Gearbox, load weight 2800 kg, wheelbase 2920 mm,  60,099 DM

Volkswagen California Coach Diesel Motor 1.9 litre Turbo-D Kat, 4 cylinder, 50 KW (68 PS), 5 Speed Gearbox, load weight 2725 kg, wheelbase 2920 mm,  54,775 DM

2) 1993 - 1995 VW Westfalia T4 Transporter California Coach Camper Colour Options

The VW Westfalia California Coach Camper was available in 5 colours.

H3H3 Marsala Red (LH3D) (Marsalarot)

C1C1 Silver Grey Metallic (LD7V) (Silbergrau Metallic)

M2M2 Caribbean Green (LP6M) (Karibikgrün)

K4K4 Jamaica Blue Metallic (LL5V) (Jamaikablau Metallic)

T7T7 Grey White (L902) (Grauweiß)



MarsalaRed

SilvergreyMet

CaribbeanGreen

1993CaliforniaCoachRedHigh



1994CaliforniaCoachGreenHig

1993CaliforniaCoachPopRed

1993CaliforniaCoachSilverPo

1994CaliforniaCoachPopGreen

































JamaicaBlue

GreyWhite



1993CaliforniaCoachHighWhit

1993CaliforniaCoachMetBlueP

1994CaliforniaCoachPopWhite



































3) 1993 - 1995 VW Westfalia T4 Transporter California Coach Camper Furniture Specification

The 1993 - 1995 VW Westfalia T4 Transporter California Coach Camper layout consisted of:

CaliforniaCoachLayout



























1993 - 1995 VW Westfalia T4 Transporter California Coach Camper Interior Photos

The Volkswagen Westfalia California Coach camper had light grey furniture with a blue speckle finish and blue edging. The upholstery had a grey / blue patterned woven fabric.

1994CaliforniaCoachInt1

1994CaliforniaCoachInt6

1993CaliforniaCoachInt1

1994CaliforniaCoachInt2

1994CaliforniaCoachInt9

1994CaliforniaCoachInt3

1994CaliforniaCoachInt8

1994CaliforniaCoachLuggageC

1994CaliforniaCoachInt4

































4) 1993 - 1995 VW Westfalia T4 California Coach Camper Upholstery Specification

The upholstery material in the VW Westfalia T4 California Coach camper for driver, passenger and rear seat/bed was a grey flat woven fabric with blue stripes and pattern known as “Flockwürfel” which translates to something like “Flock cubes”.

1992CaliforniaCoachSeatMaterial

1994CaliforniaCoachSeatMate

1994CaliforniaCoachSeatMat1













The curtains for sides and rear in the VW Westfalia T4 California Coach camper were grey.

1994CaliforniaCoachCurtains

















5) 1993 - 1995 Volkswagen Westfalia T4 California Coach Camper High Top Roof Specification

The high top roof outside finish for the VW Westfalia California Coach Camper is in the same colour as the vehicle.

The inside headroom of the vehicle with hightop was 203 cm.

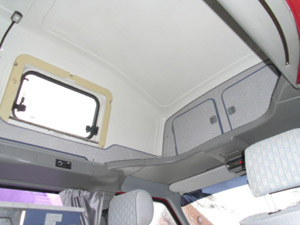

Lockers left and right in hightop front.

Two opening side windows in roof (one on each side) with mosquito nets and roller blinds.

1993CaliforniaCoachRoofLock

















Upper bed in hightop is 190 cm x 109 cm and  bed cushion foam is 6.5 cm thick.

1994CaliforniaCoachRoofBed

















1993 - 1995 Volkswagen Westfalia T4 California Coach Camper Pop Top Roof Specification

1994CaliforniaCoachPopTopIn













The inside headroom of the vehicle with poptop was 135 cm.

Upper bed in poptop is 184 cm x 106 cm and  bed cushion foam is 4.5 cm thick.

Ventilation window in the front canvas of the pop top with mosquito net.

6) 1993 - 1995 Volkswagen Westfalia T4 California Coach Camper Flooring and Carpeting Specification

The flooring in the rear of the VW Westfalia T4 California Coach camper was a hard wearing grey PVC material. The step is made from black plastic.

1990CaliforniaRearFloor

CaliforniaFlooring













Velour carpet floor lining in drivers cab.

7) 1993 - 1995 Volkswagen Westfalia T4 California Coach Camper Door Trim Specification

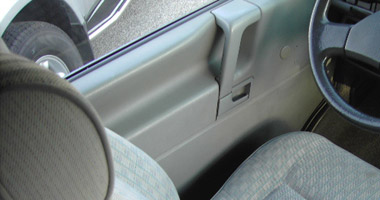

Door interior trims made from grey plastic.

1994CaliforniaCaochDoorTrim





















8) 1993 - 1995 Volkswagen Westfalia T4 California Coach Camper Standard Model Specification

Exterior Dimensions

Length - 4655 mm (short wheelbase).

Width - 1840 mm

Height - Poptop 1990 mm / Hightop 2570 mm

Windows

Clear glass windows in rear living area. Sliding window (bonoplex double glazed) in front left above kitchen opposite the sliding door.

Curtains

Grey curtains all round for the living and cab area.

Electrical

220 volt External CEE Hook Up socket on the outer wall at the rear left with one internal outlet socket in living area and safety trip cut out (FVLS 0.01A). Hook up adaptor cable is included.

Automatic battery charger.

Leisure battery 12V 80 Ah (maintenance free) with split charge relay for equipment in living area (freezer / fridge etc). Charged by alternator or battery charger.

Alternator 90 Amp (or higher capacity for 5 cylinder engines).

12V socket in living area.

Fuses for electrical equipment in living area.

CaliforniaFuses

















Central electronic control unit in drivers cab above the mirror with LCD display for outside temperature, charge level of the batteries, operating status of the cool box / fridge, freshwater / waste water tank levels, push button adjustment for cool box / fridge temperature.

1994CaliforniaCoachCentralE













Single tone horn.

Halogen headlights with range adjustment.

Two reversing lights.

Rear fog light.

Adjustable instrument panel lights.

Warning light for hand brake, brake circuit failure and brake fluid level.

Windscreen wipers with intermittent, two speed and wash / wipe functions.

Two 11 Watt transistor lights.

One swan neck 5 Watt halogen light.

Living / Bedroom Area

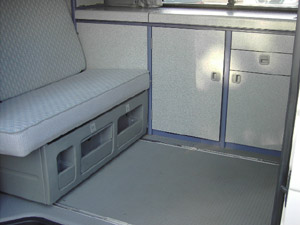

Two person seat bench that slides and folds to make a double bed in conjunction with rear bed cushion.

Rear seat bench has one three point automatic safety belt and one lap belt automatic safety belt.

Preparation for acceptance of headrests in rear seat.

Storage compartment under the seat bank.

Three storage compartments in the seat bank front.

1994CaliforniaCoachRearSeat

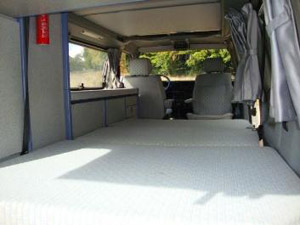

Double bed is 194 cm x 117 cm and bed cushion foam is 8 cm thick.

1994CaliforniaCoachLowerBed

















Wardrobe on the left hand side.

Storage cabinet at the rear left hand side.

Roof storage locker in the rear with a mirror.



Kitchen

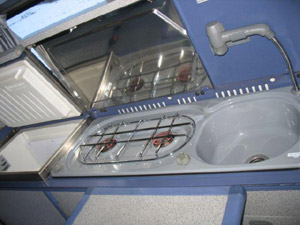

The kitchen cupboard is opposite the sliding door with a sink / cooker combination with an adjustable cover, cutlery drawer and storage for tableware and provisions.



1994CaliforniaCoachKitchen

















Spirit cooker with two burners (performance with strong flame approx 1100W, consumption at rated power approx 0.27 litre / hour).

1994CaliforniaCoachCooker

Option to have gas cooker at extra cost.



















If gas cooker option is chosen then the gas cylinder is located in the cupboard underneath.

CaliforniaCoachGasBottle













Sink dimensions 27 cm long x 27 cm wide x 12 cm deep. Finished in enameled steel with single tap (with switch for water pump), flexible hose, and adjustable head for jet and shower.

CaliforniaSink

CailforniaTap

















Removable table (72 cm x 40 cm). Stored in rear seat bench.

1994CaliforniaCoachTable

1994CaliforniaCoachTableSto













Fridge

40 litre Electrolux compressor fridge.

1994CaliforniaCoachFridge

















Freshwater and Wastewater

53 litre freshwater tank.

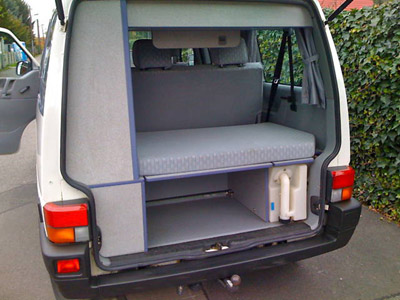

Filled using a rotating neck at the rear.

1994CaliforniaCoachRearView























Emptied outside under the vehicle. Cleaning opening on tank.

Freshwater tank has a submersible pump.

Freshwater line with separate emptying.

27 litre wastewater tank (frost protected inside vehicle). Emptied using tap accessible in kitchen cupboard.

Standard Equipment

Power Steering.

Front Spoiler.

Laminated Windscreen

Adjustable outside mirrors with drivers side flat and passenger side convex.

Sliding door on right hand side to access living area.

Closed window aperture for the living area at the rear left.

Locking Fuel Cap.

Heated rear windscreen with rear wash wipe.

Bumpers in black.

Two front swivel seats with armrests and  height adjustable head rests.

Height adjustable automatic three point safety belts.

Speedometer with resettable mileage trip and analogue clock (rev counter and digital clock with automatic gearbox).

Cigarette Lighter.

Ashtray.

Fresh air supply with 4 speed fan.

Heating with mechanical control.

Two swivelling and folding sunvisors.

Make up mirror on passenger side sun visor.

Dipping rear view mirror.

Inner light (with separate reading light).

Locking storage under dashboard on right hand side.

Open storage under dashboard on left hand side.

Storage trough in the dashboard on the right hand side.

Grab handle in roof frame on the right hand side.

Storage pocket on passenger door.

Child lock on sliding door.

Floor heating with plastic safety cover.

Roof inner cladding with integrated curtain rails.

Radio suppression kit to prevent interference.

9) Options available at extra cost included:

There were many options available at extra cost for your Westfalia T4 California Coach Camper. Below is a list of some of them taken from 06/1994 (1995 Model Year) price list. Prices include tax and are in German Deutschmark:

Airbags for driver and passenger side (replaces cup holder). Cost 1213 DM

Towbar (various options). Cost between 794 and 995 DM

Preparation for fitting of towbar. Cost 201 DM

Anti lock braking system (ABS). Cost 2530 DM

Electrically adjustable and heated outer mirrors:

    on drivers side flat and on passenger side convex. Cost 449 DM

    on driver and passenger side convex. Cost 449 DM

Stronger battery (various options dependent on engine spec.). Cost between 70 and 196 DM

Second auxiliary battery 80 Ah for the living area for fridge etc (only with night heater). Cost 575 DM

Dual tone horn. Cost 89 DM

Stronger alternator:

    120 Amp (not for diesel motor, only for 2.0 l when climate control specified). Cost 236 DM

Rev counter and digital clock (standard when automatic gearbox specified). Cost 236 DM

Windows in cab area:

    Tinted glass instead of clear glass. Cost 316 DM

Windows in living area:

    Tinted glass instead of clear glass. Cost 362 DM

    Double glazing instead of clear glass (apart from opening window in living area), rear window not heated. Cost 1075 DM.

    Sliding window (clear glass), front right not with tinted or double glazed options. Cost 397 DM.

    Sliding window (tinted glass), front right only with tinted glass option. Cost 397 DM.

    Sliding window with fly net (tinted glass), front right only with tinted glass option. Cost 397 DM.

    Sliding window (double glazed apart from sliding part of sliding window), front right only with double glazing option. Cost 397 DM.

Electric cab windows. Cost 799 DM

Cruise control (not with 1.9 l diesel motor). Cost 817 DM

Night heater:

    without timer, outlet only in living area, thermostat in roof frame (only with 2 additional batteries). Cost 3490 DM

    with timer, outlet only in living area, thermostat and timer in roof frame (only with 2 additional batteries). Cost 3766 DM

1994CaliforniaCoachHeaterTi













Climate control with mechanical control and vents in drivers cab (only with 2.0l and 2.5l otto, with 5 speed must have 60A battery, only with 120A alternator, not with 1.9 l diesel and turbo diesel motor or 2.4 l diesel motor with automatic gearbox).  Cost 3393 DM

Metallic paint. Cost 2162 DM

Air filter (dust protection) with filter saturation indicator (not with airbags). Cost 242 DM

Make up mirror with light for drivers side. Cost 114 DM

Make up mirror with light for passenger side. Cost 114 DM

Front fog lights. Cost 426 DM

Alloy wheels. (7 J x 15) with 205/65 R 15 99 S reinforced tyres. Cost 1955 DM

Wheel trims. Cost 133 DM

Tyres 205/65 R 15 99 S reinforced. Cost 437 DM

All year tyres 195/70 R 15 97 S reinforced. Cost 71 DM

Mud + Snow tyres 205/65 R 15 99 S reinforced instead of tyres 195/70 R 15 97 S reinforced. Cost 702 DM

Mud + Snow tyres 205/65 R 15 99 S reinforced - only with alloy wheels. Cost 265 DM

Radios (stereo):

    radio “Alpha” (Stereo radio cassette), 2 loudspeakers, front screen antenna. Cost 656 DM

    radio “Beta” (Stereo radio cassette), 4 loudspeakers, front screen antenna. Cost 972 DM

    radio “Gamma” (Stereo radio cassette) 6 loudspeakers, front screen antenna. Cost 1219 DM

Heated windscreen washers. Cost 71 DM

Headlight wash / wipe system. Cost 523 DM

Rear mud flaps. Cost 129 DM

Front mud flaps. Cost 129 DM

Front and rear mud flaps. Cost 259 DM

Stabilisers - front (strong) and rear. Cost 472 DM

Anti tamper speedometer (seal with seal wire). Cost 51 DM

Anti tamper speedometer (with paint). Cost 51 DM

Underbody protection for extreme conditions. Cost 408 DM

Central locking. Cost 834 DM

10) Accessories available at extra cost included:

There were many accessories available at extra cost for your Westfalia T4 California Coach Camper. Below is a list of some of them taken from xx/xx price list. Prices include tax and are in German Deutschmark

Coming soon !

11) 1993 - 1995 VW Westfalia T4 Transporter California Coach Camper Side Stripes and Logos

VW Westfalia T4 California Coach side stripes and logos.

CaliforniaCoachFrontLogoWhi

CaliforniaCoachRearLogoWhite

CaliforniaCoachSideLogoWhit

CaliforniaCoachGreenLogoF



CaliforniaCoachSideLogoGree

CaliforniaCoachLogoRedF

1993CaliforniaCoachRLogoRed

1994CaliforniaCoachLogoSide

1993CaliforniaCoachSFrontLo

1993CaliforniaCoachSRearLog

1993CaliforniaCoachSSideLog









































12) Links to Volkswagen Westfalia T4 California Coach Camper Sales Brochures (Prospekt) and Price Lists (Preisliste)

Please note that some of the links take you to an external site called vwpix.org, which is an excellent source of sales literature for all versions of VW camper van. Most of the brochures are in German language as this was the main market.

1993 - 1995 VW Westfalia T4 California Coach Camper Sales Brochures Prospekt  Download

Aug 1992 VW Model Range Colour And Seat Upholstery Options Sales Brochure Including VW T4 Transporter California, Multivan, Caravelle, Caddy, Taro and LT models Prospekt (8 Pages Colour).

1993 VW Westfalia T4 Transporter California Coach Camper Sales Brochure Prospekt (4 Pages Colour).

Sept 1993 VW Westfalia T4 Transporter California Camper Safety Brochure Prospekt (4 Pages Colour).

Dec 1993 VW Westfalia T4 Transporter California Range including Coach Camper Sales Brochure Prospekt (32 Pages Colour).

1993 VW Westfalia T4 Transporter California Range including Coach Camper Technical Information Prospekt (4 Pages Colour).

Aug 1994 VW Westfalia California Coach Sales Brochure Prospekt (24 Pages Colour).



1993 - 1995 VW Westfalia T4 California Coach Camper Accessories Zubehör Download

Jan 1993 VW Westfalia T4 California Coach Accessories Zubehör Catalogue (10 Pages Colour).



1993 - 1995 VW Westfalia T4 California Coach Camper Price Lists Preisliste Download

Jan 1993 VW Westfalia T4 California Coach Accessories Catalogue Price List Preisliste (4 Pages Black and White).

Feb 1993 VW Westfalia T4 California Coach Price List Preisliste (4 Pages Colour).

July 1993 VW Westfalia T4 “The New Radio Generation” Alpha, Beta and Gamma Information and Pricelist Preisliste (4 Pages Colour).

Jan 1994 VW Westfalia California Coach, Tour, Club Price List Preisliste (4 Pages Colour).

June 1994 VW Westfalia T4 California Coach Price List Preisliste (5 Pages Colour).

Jan 1995 VW Westfalia T4 California Coach Price List Preisliste (5 Pages Colour).

May 1996 VW Westfalia T4 California Coach Accessories Zubehör Catalogue Price List Preisliste (6 Pages Black and White).



1993 - 1995 VW Westfalia T4 California Coach Camper Magazine Article / Magazine Advert / Magazine Review Download

1993 VW Westfalia T4 California Coach, California Club, California Tour Magazine Advert (2 Pages Colour).



For loads more downloads including Owners User Instruction Manuals, Repair Manuals and Equipment Manuals visit the VW T4 Westfalia Camper Downloads Page ;-)



To get notifications when this site is updated subscribe to my VW Camper Blog or Follow Us on Facebook.

If you find the site useful please consider making a small donation to help pay towards the site running and development costs by clicking the Paypal button on the left (You don’t need a Paypal account to make a donation) ;-)





Please read the Disclaimer and Privacy and Cookie Policy before using this site.

© Copyright 2010 -     All rights reserved
